TYPICAL LED SETUPS ON HELICOPTERS !

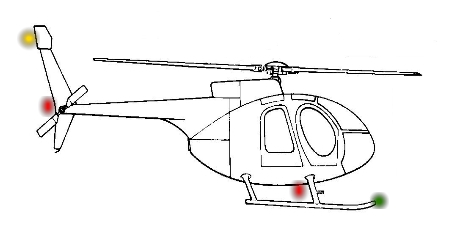

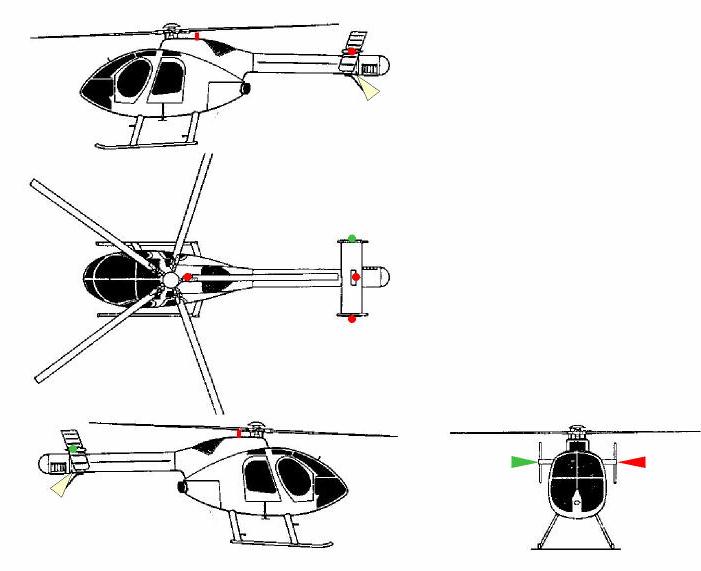

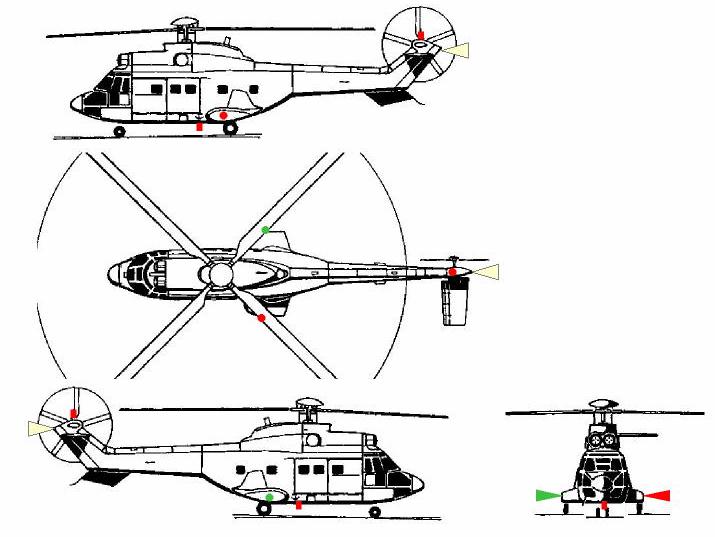

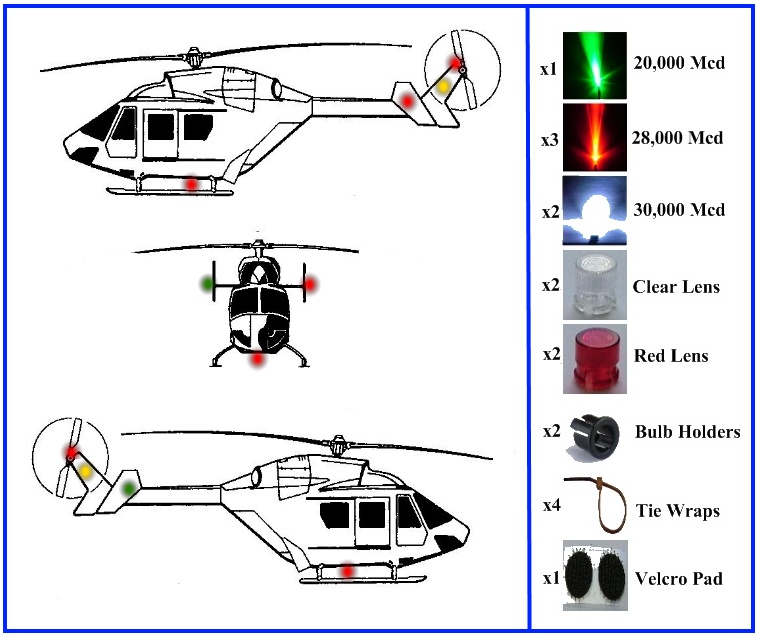

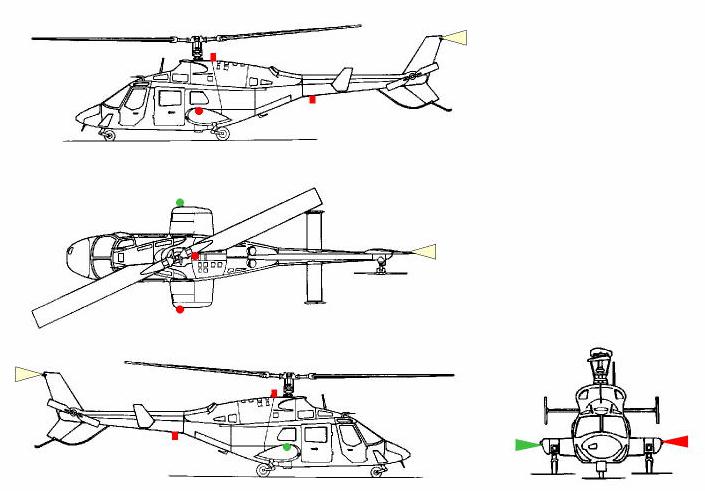

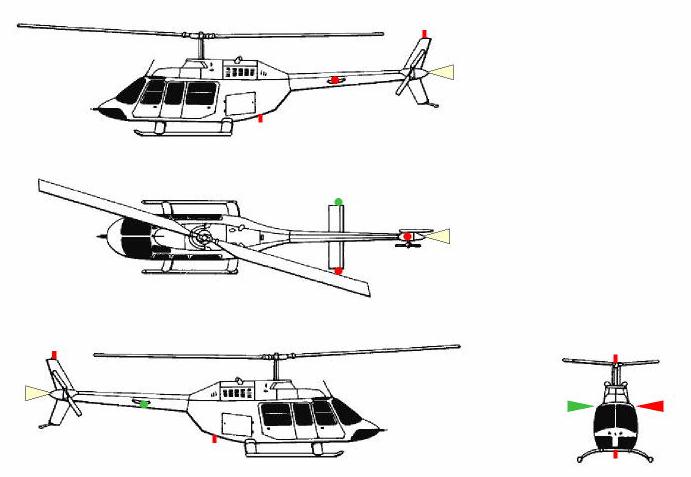

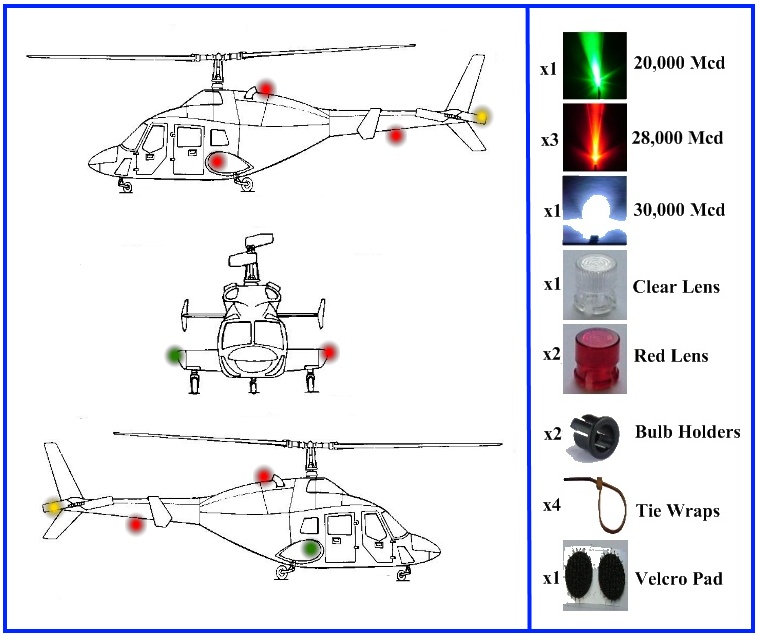

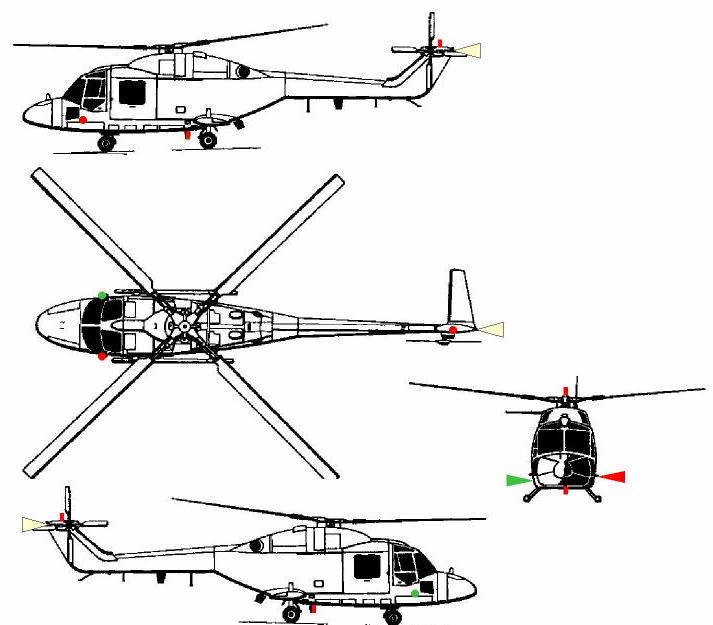

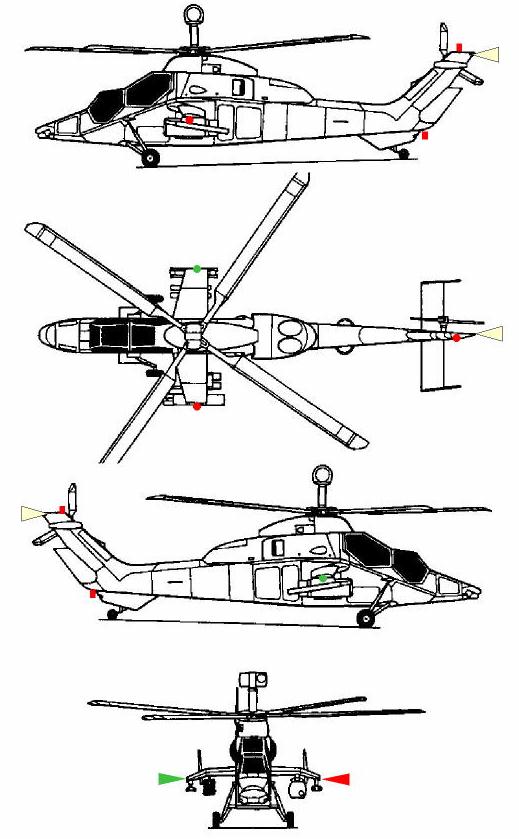

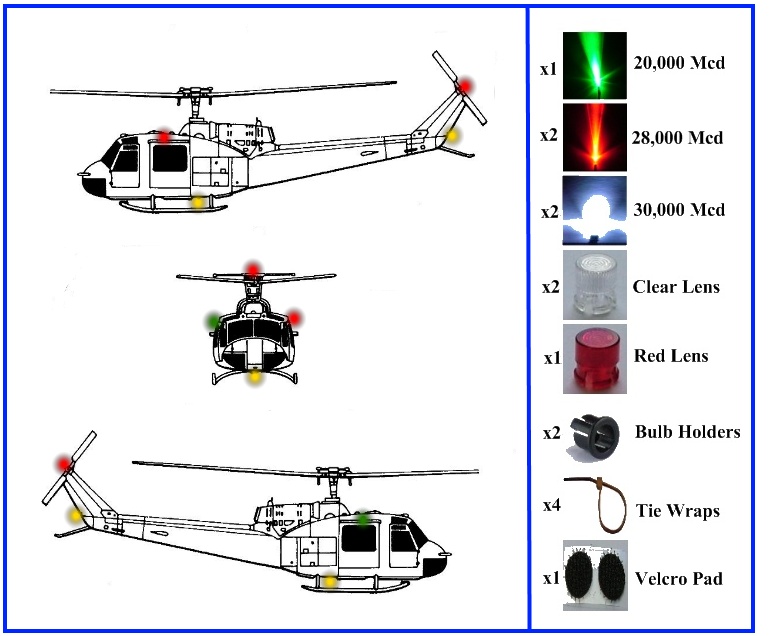

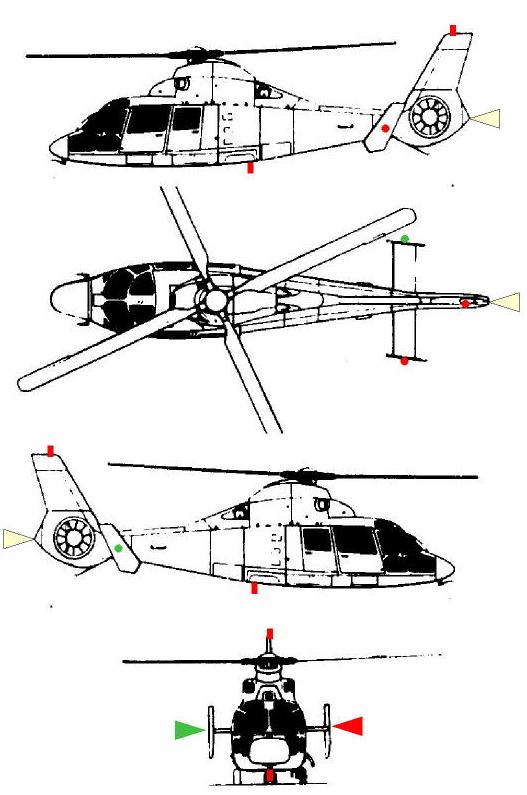

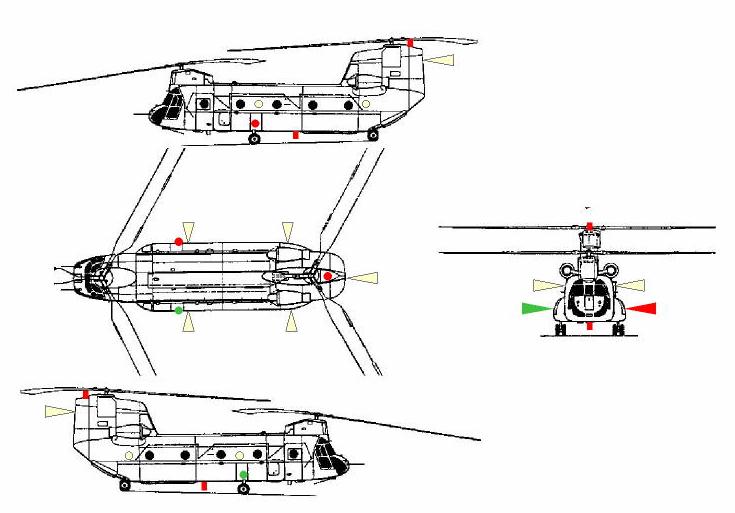

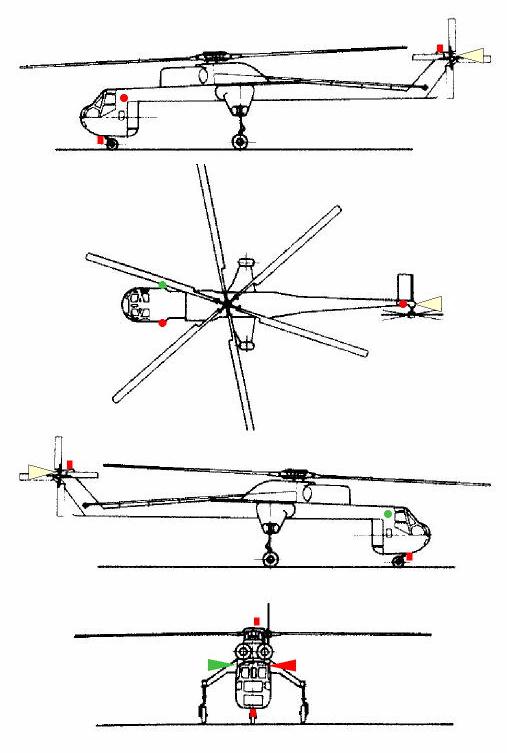

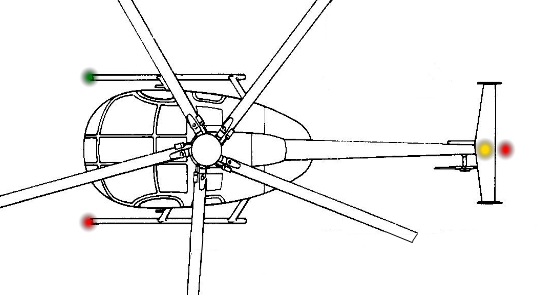

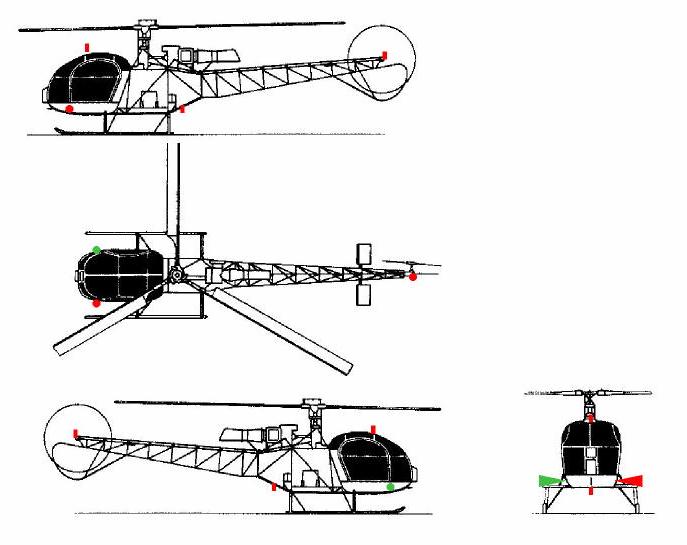

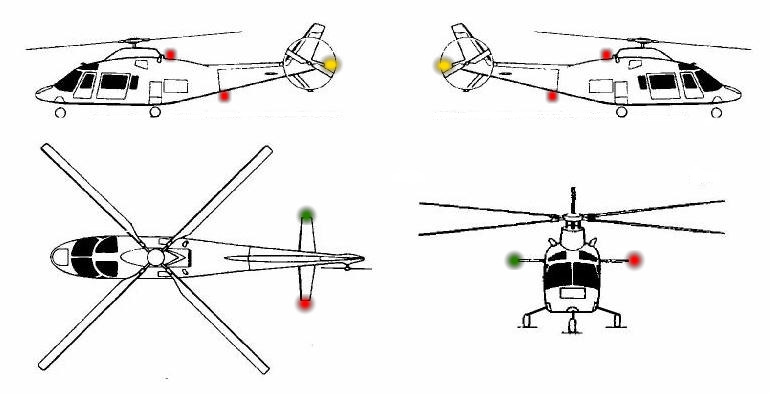

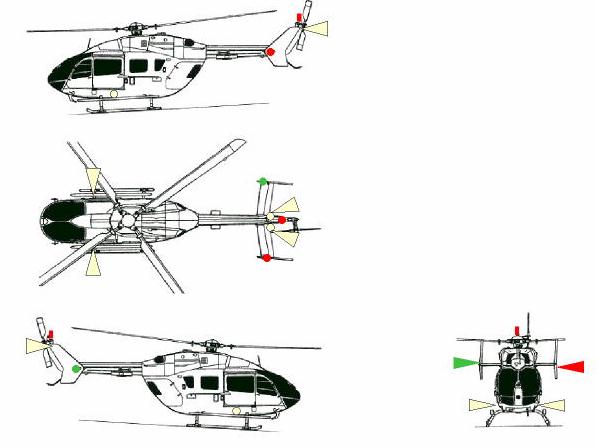

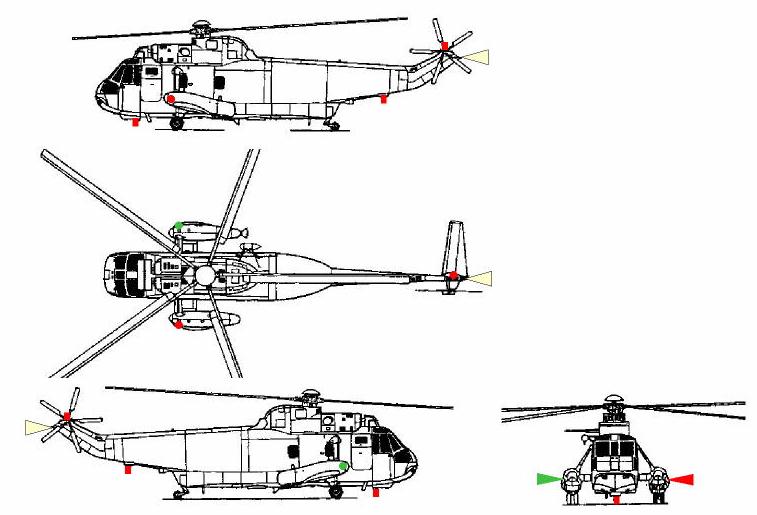

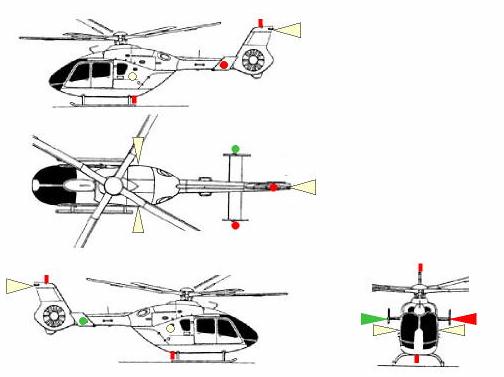

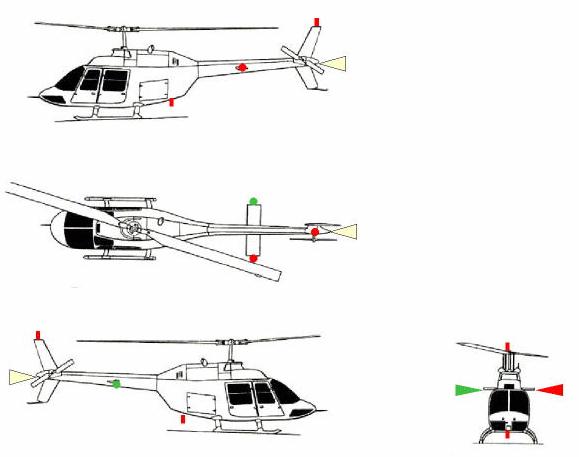

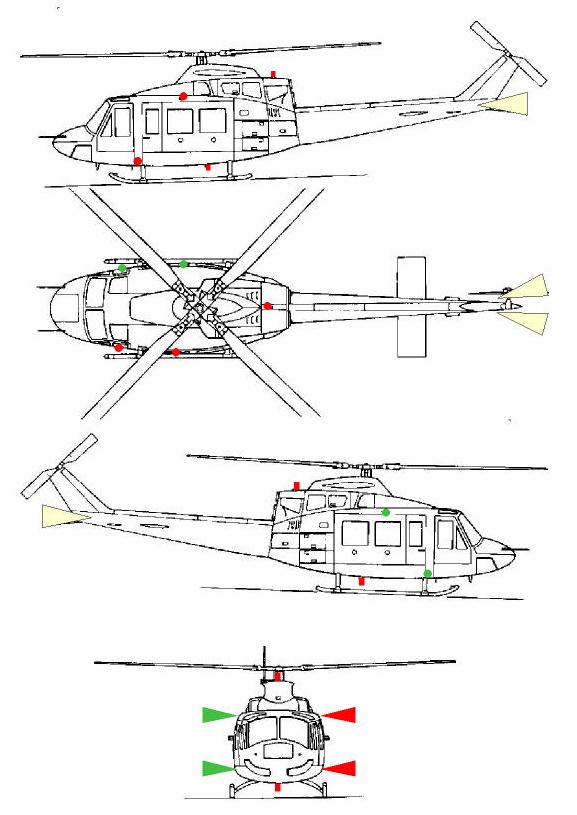

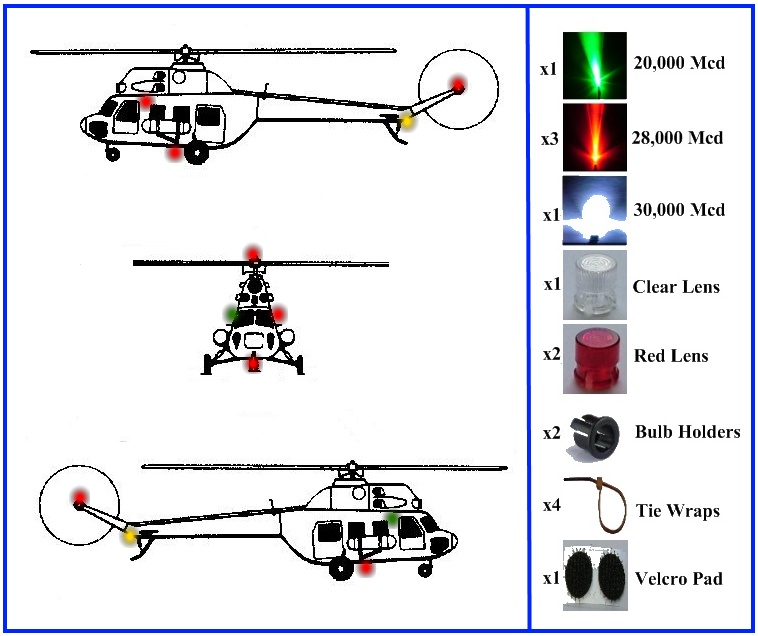

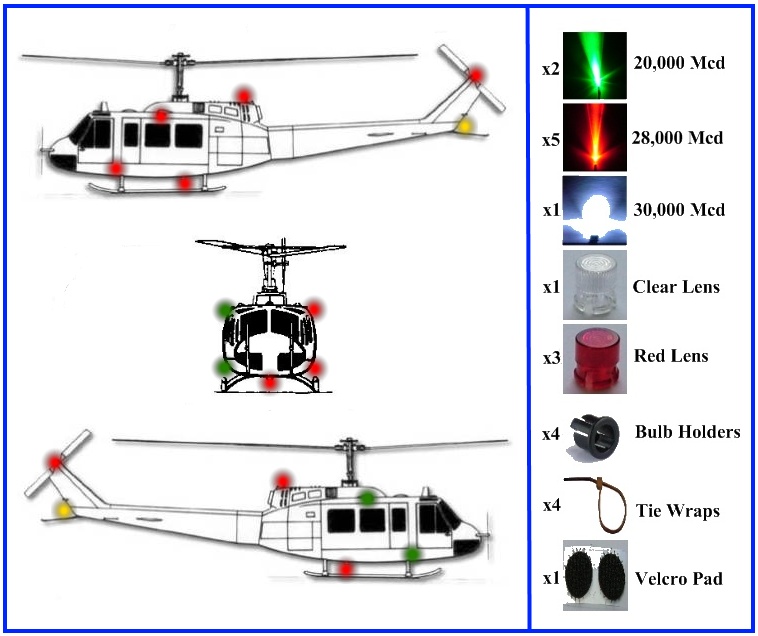

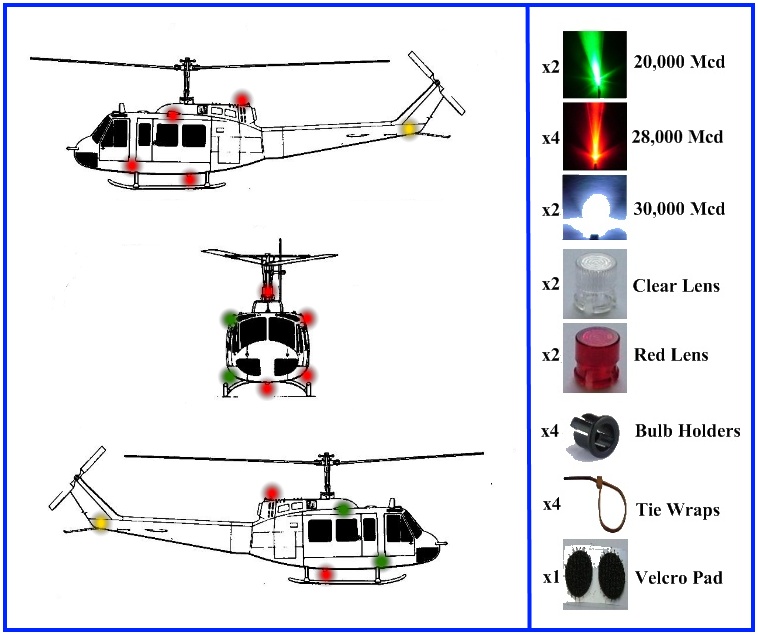

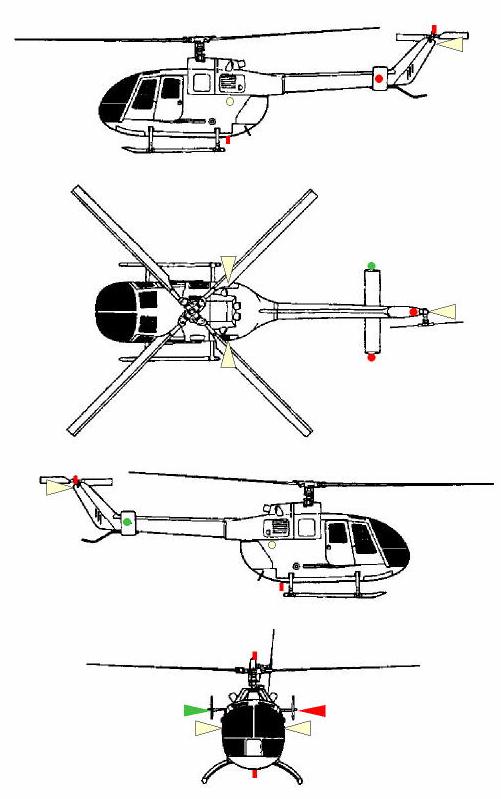

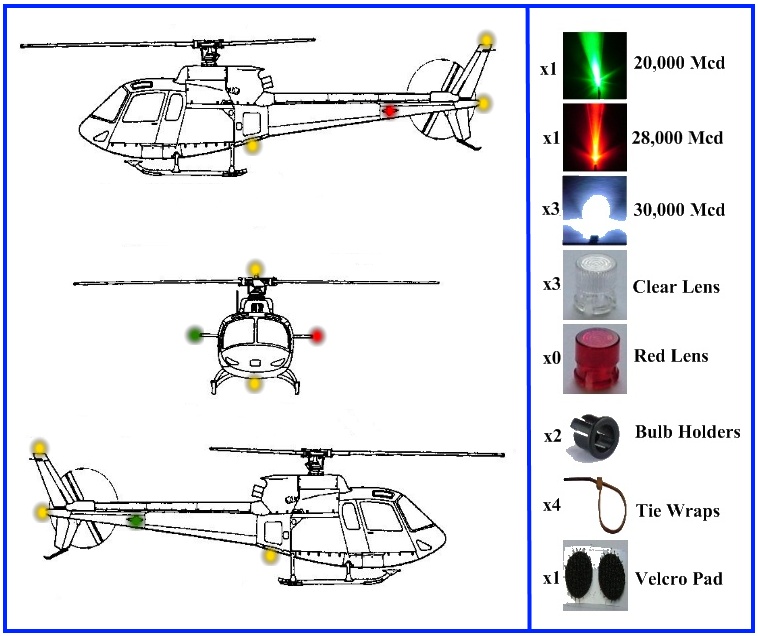

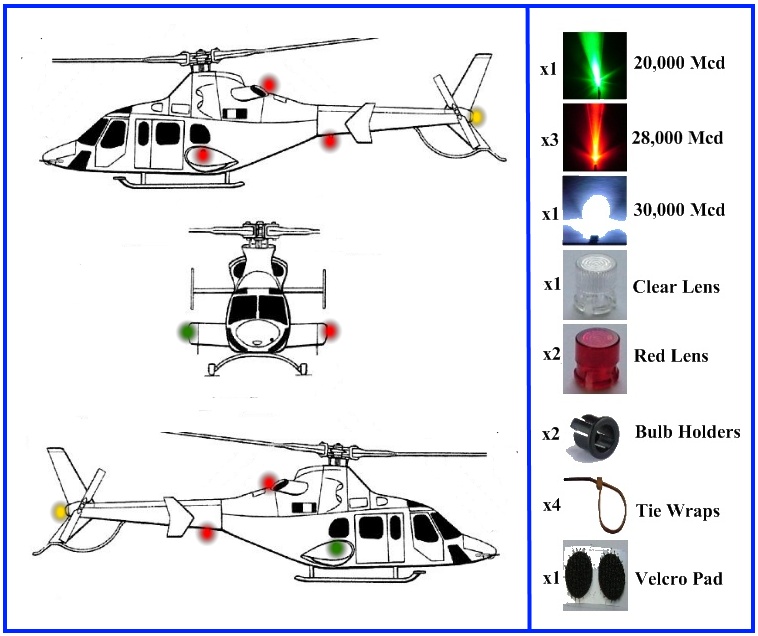

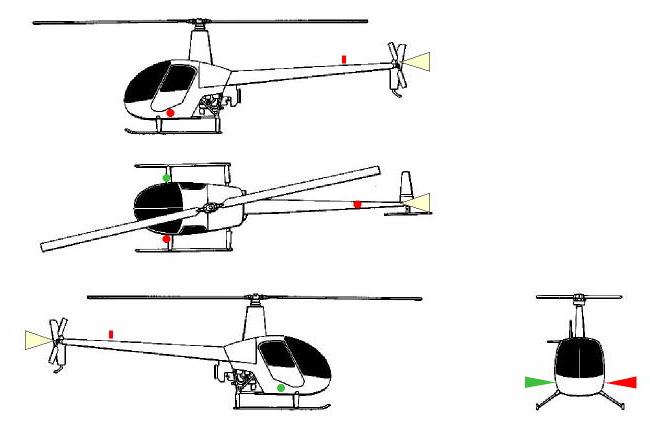

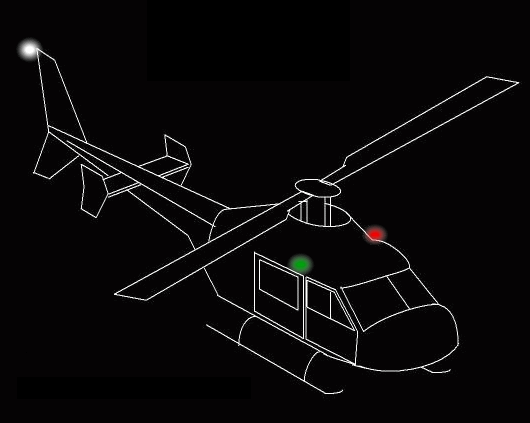

The standard setup on a real aircraft would be red (non flashing) on the left, green (non-flashing) on the right , and a white (non-flashing) on the tail. These are the Navigation lights. The ones that flash would be: white (next to the Navigation lights, red, green and white). Another flashing one (in some cases two Red) would be on the top and/or bottom.  Below are a few example graphics that indicate where certain navigation lights are located on particular models (more will be added soon!).
