R/C Servo Reverser Project

History

Parts

Building

Testing & Operation

Notes

Note: All pictures that follow are "clickable".  Clicking on them will show you an enlargement!

A lil' history ...
    This projects will describe a simple Servo Reverser that can be cheaply built using a CD4001 NOR gate, 4 resistors, 3 capacitors and one variable potentiometer (see schematic below).




More coming soon... (i.e., PCB and building design notes...)

Design Criteria Summary:

1) Design a simple 1-IC Servo Reverser!  That simple!
2) Non-PIC project (this is too easy for a PIC any way!)
3) Interfaces between your receiver and servo
4) Small PCB and minimal components
5) Derives power from the connection to your receiver
6) Adjustable "centering" via variable resistor (potentiometer)

Parts & Tools List ...

1) One (1) CD4001 CMOS IC (Quad NOR)
2) Two (2) 1K Resistor
3) One (1) 10K Resistor
4) One (1) 56K Resistor
5) One (1) 100K Variable Resistor (Potentiometer)
6) Two (2) .1uF Capacitor
7) One (1) 22uF Capacitor
8) Input/Output Servo Connectors (1 each, Male/Female)


Building Instructions...

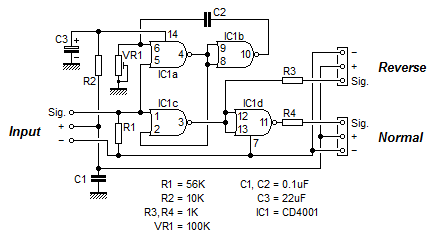

The circuit/schematic is shown below (PCB is pending...) :

NOTE:  If you only require a servo reverser output, you can omit the connections to IC1d (pins 12, 13 and 11), while omitting R4.

Testing and Operation Instructions...

1. More coming soon...

2. ...

Additional Notes...
bullet

Notes will be added here when possible...
